FM Grinder 80/98/120/180mm

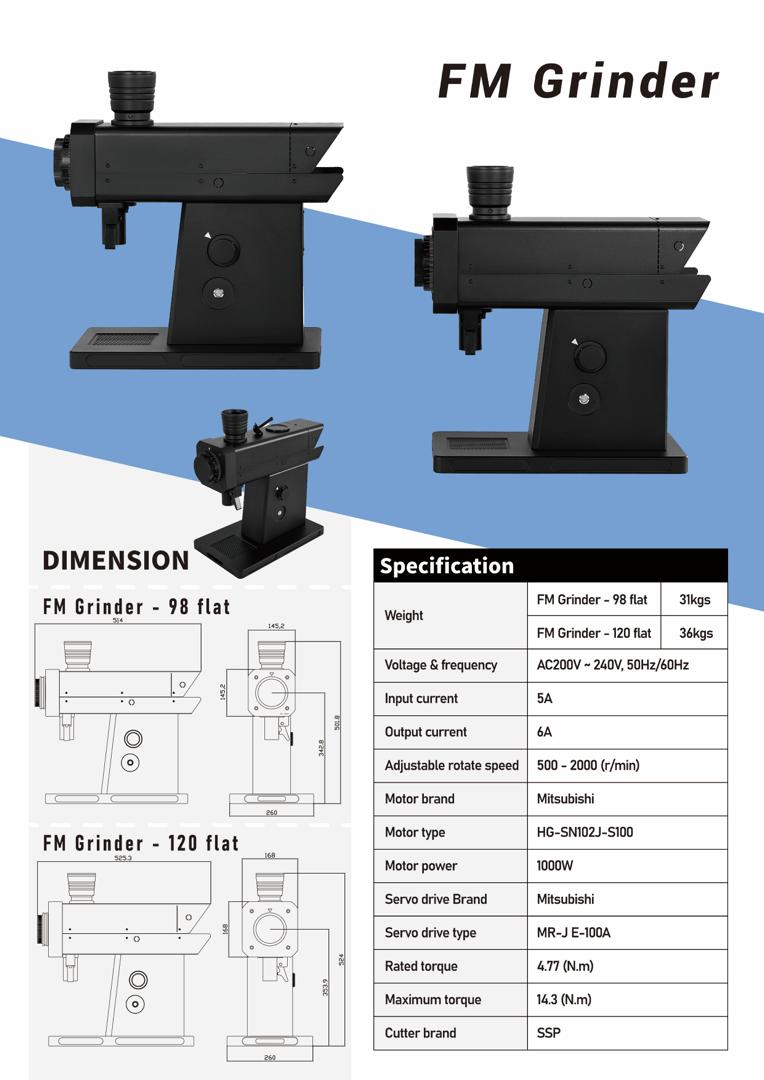

Weight
98 Flat – 31kgs
120 Flat – 36kgs

Voltage & Frequency
AC200V-240V , 50Hz/60Hz

Input/OutPut Current
5A/6A

Adjustable Rotate Speed
500-2000(r/min)

Motor Brand / Servo drive Brand
Mitsubishi

Motor Type
HG-SN102J-S100

Motor Power
1000w

Servo drive type
MR-J E -100A

Rated Torque – MAX
4.77(N.m) -14.3 (N.m)

Cutter Brand
SSP

________________________________________________________________

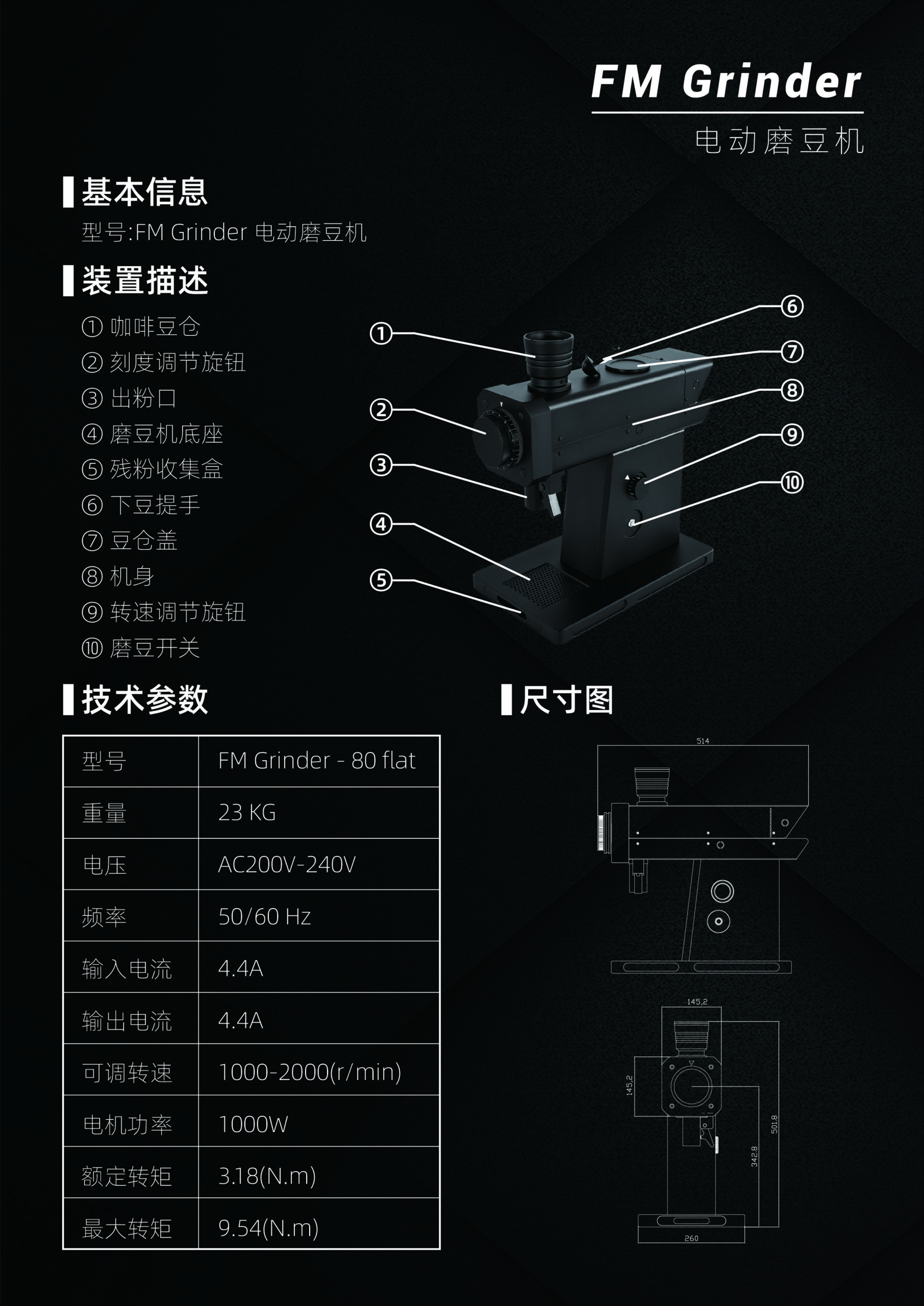

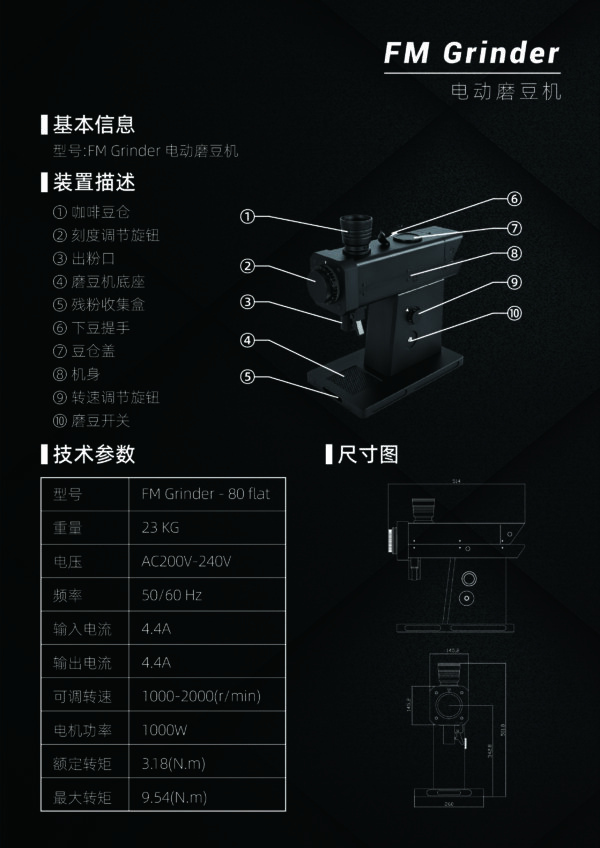

Weight
80 Flat – 23kgs

Voltage & Frequency
AC200V-240V , 50Hz/60Hz

Input/OutPut Current
4.4A

Adjustable Rotate Speed
1000-2000(r/min)

Motor Power
1000w

Rated Torque – MAX
3.18(N.m) -9.54 (N.m)

Cutter Brand
Fm Grinder
