HB-L6S Coffee Roaster

The HB-L6S Coffee Roaster is a high-performance commercial coffee roasting machine developed for medium-scale roasting operations. Offering 3–6 kg batch capacity, it combines convection heating, intelligent APP control, and precision airflow management to produce consistent roast profiles. Available in both gas and electric configurations, the HB-L6S is suitable for cafés, specialty roasters, and commercial production facilities.

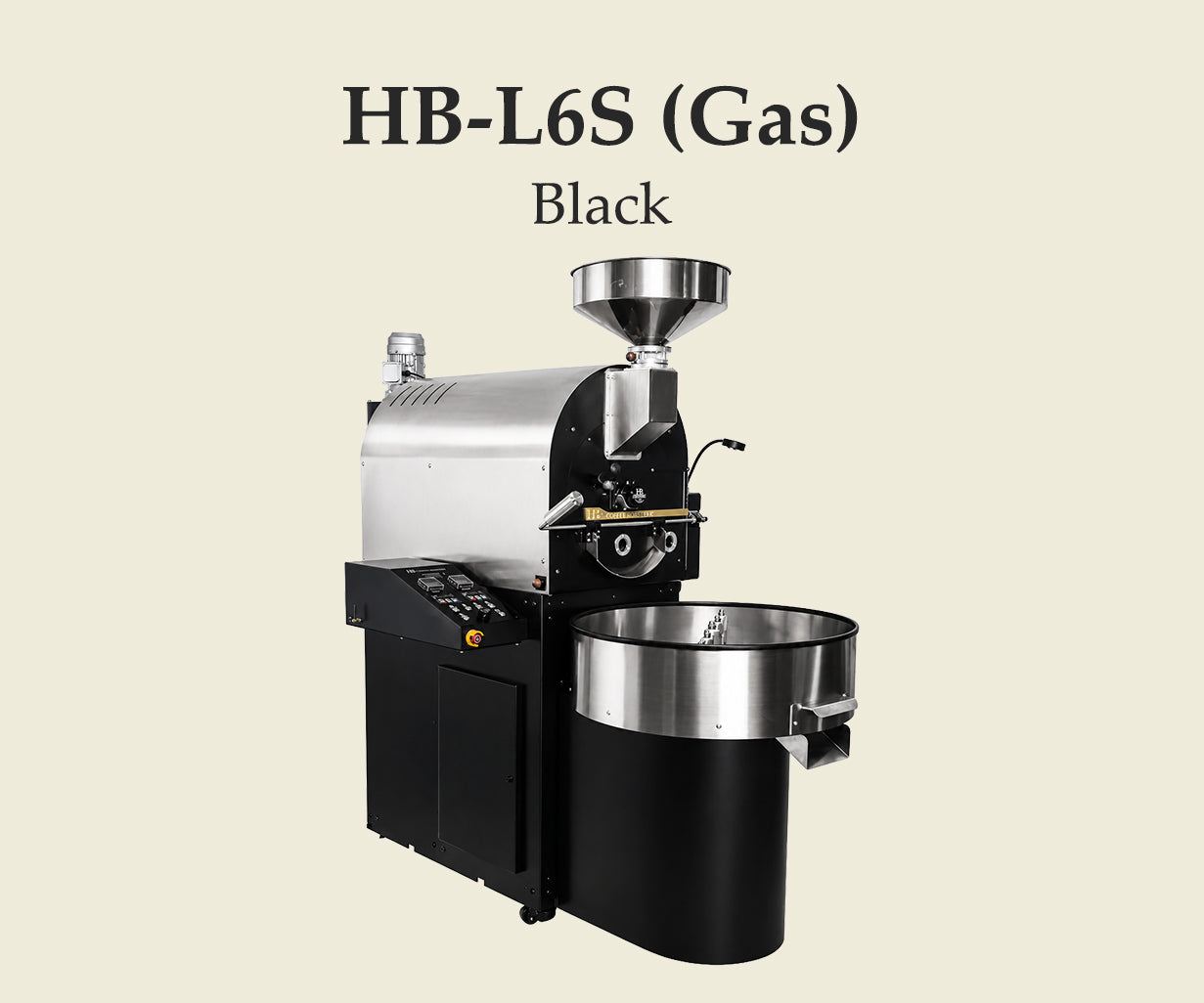

HB-L6S-G (Gas)

Fuel: LPG / NG
Voltage: 220V
Rated Power: 900W

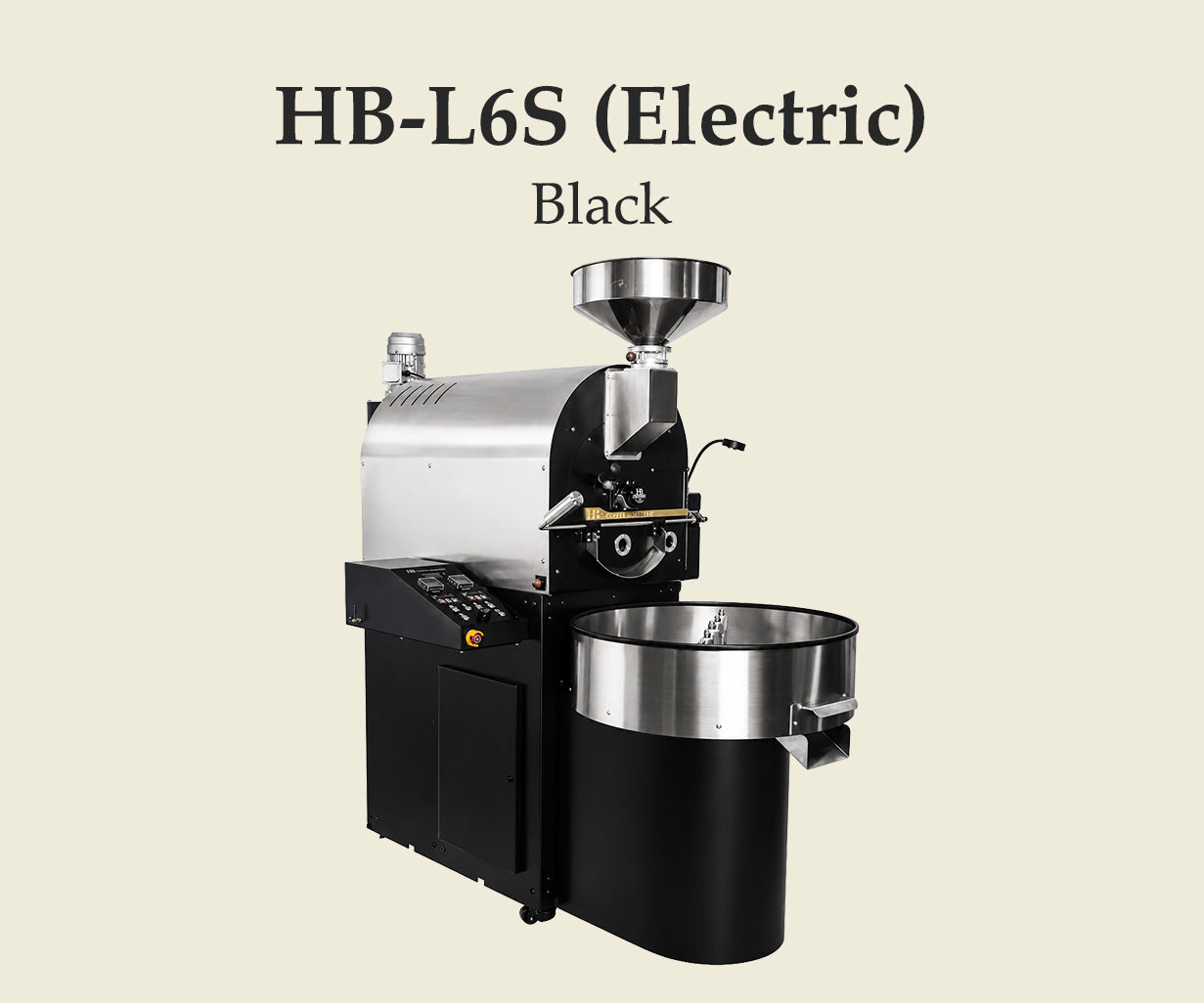

HB-L6S-E (Electric)

Voltage: Three-phase 380V
Rated Power: 15.3 kW
Rated Current: 25A

General

Specification	Details
Product Type	Coffee Roaster
Model	HB-L6S
System	APP
Batch Size	3–6 kg
Roasting Capacity	24 kg/h
Roasting Time	6–15 minutes
Heating Method	Convection Heating
Color	Black
Net Weight	248 kg
Gross Weight	320 kg
Display	Four-way Temperature Display
Data Output	USB & HDMI

Gas Version

Specification	Details
Fuel	LPG / NG
Rated Voltage	220V
Rated Power	900W
Gas Consumption (LPG)	0.24–0.72 m³/h
Gas Consumption (NG)	0.48–1.44 m³/h
Gas Supply Pressure	4 KPa

Electric Version

Specification	Details
Voltage	Three-phase 380V
Rated Power	15.3 kW
Rated Current	25A
Heater	Multiple-Unit Heating Wire

Drum System

Specification	Details
Drum Type	Double-wall Cast Steel Drum
Drum Paddle	Double-layer Multi-piece Paddle
Drum Speed	10–62 RPM

Hot Air System

Specification	Details
Hot Air Control	Digital Air Pressure / Variable Frequency
Hot Air Fan Discharge	7.2 m³/min
Hot Air Duct Diameter	150 mm

Cooling System

Specification	Details
Cooling Type	Stirring Cooling
Cooling Fan Discharge	30 m³/min
Cooling Duct Diameter	150 mm

Machine Dimensions

Specification	Details
Machine Size	1700 × 840 × 1760 mm
Chaff Bucket	480 × 385 × 1850 mm
Package Size	1785 × 935 × 1750 mm

APP roasting system
USB & HDMI connectivity
Gas & Electric models
Four-way temperature display
Variable frequency airflow control
Double-wall cast steel drum
Heavy-duty commercial construction
Professional production roasting
