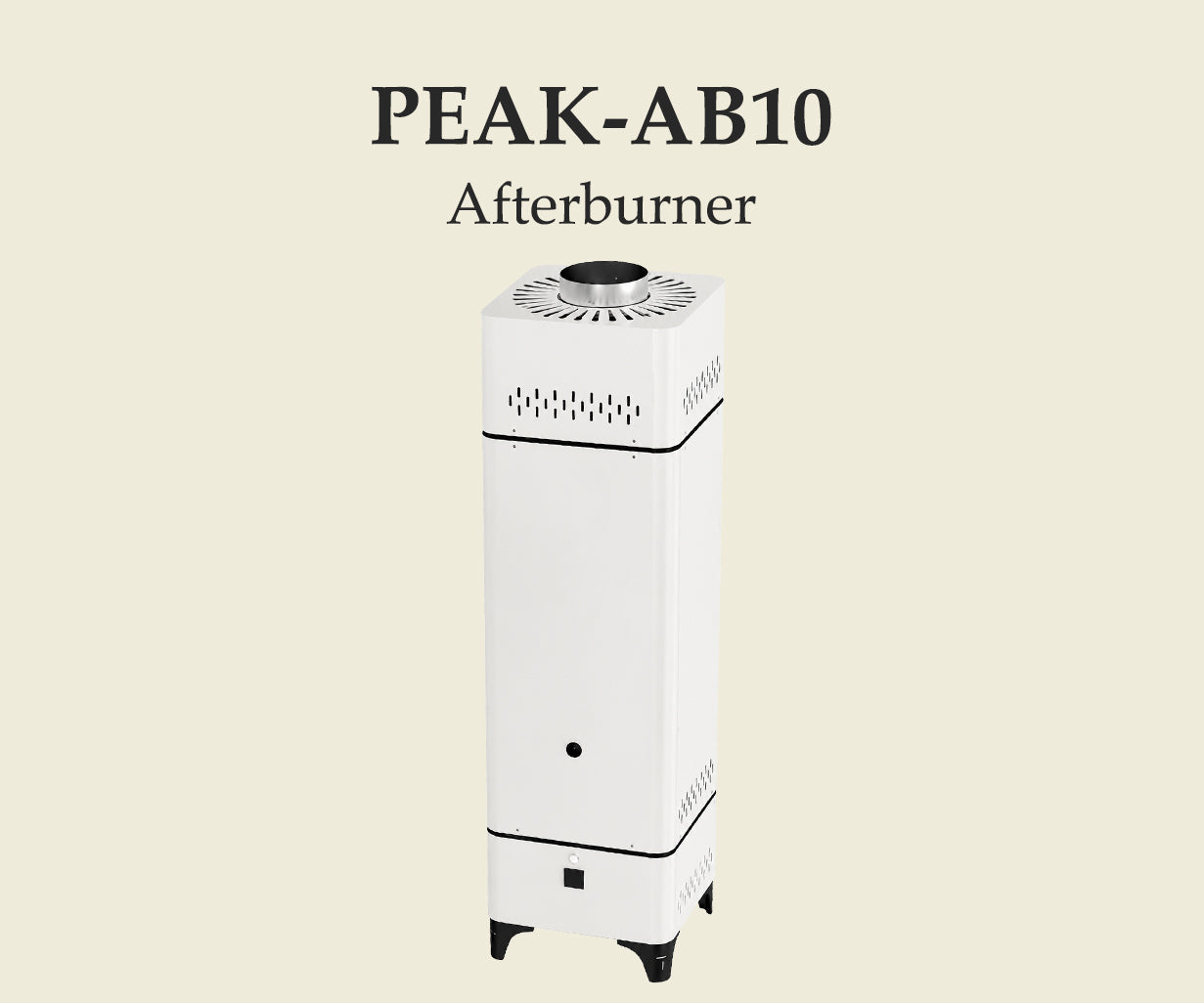

PEAK-AB10 Afterburner
RM0.00 MYR
Shipping calculated at checkout.
The PEAK-AB10 Afterburner is a compact smoke treatment system designed to reduce roasting smoke and odors in small and medium coffee roasting environments. It operates through automatic roaster linkage control, activating together with compatible PEAK coffee roasters to provide efficient smoke treatment while maintaining a cleaner roasting workspace.
General
| Specification | Details |
|---|---|
| Product Type | Afterburner |
| Model | PEAK-AB10 |
| Color | White / Black |
| Net Weight | 75 kg |
| Gross Weight | 100 kg |
Burner & Smoke Extraction
| Specification | Details |
|---|---|
| Control Method | Roaster Linkage Control |
| Gas Pressure | 2–3 KPa |
| Fuel Connection | DN15 |
| Gas Consumption (NG) | 0–2.6 m³/h |
| Gas Consumption (LPG) | 0–1.8 kg/h |
| Air Inlet | 150 mm |
| Exhaust Outlet | 200 mm |
Electrical
| Specification | Details |
|---|---|
| Rated Voltage | 220V |
| Rated Power | 35W |
Dimensions
| Specification | Details |
|---|---|
| Machine Size | 400 × 400 × 1315 mm |
| Package Size | 600 × 600 × 1400 mm |
- Automatic roaster linkage control
- Efficient smoke reduction
- Odor treatment
- Compact installation footprint
- Commercial roasting support
- Suitable for PEAK roasting systems
