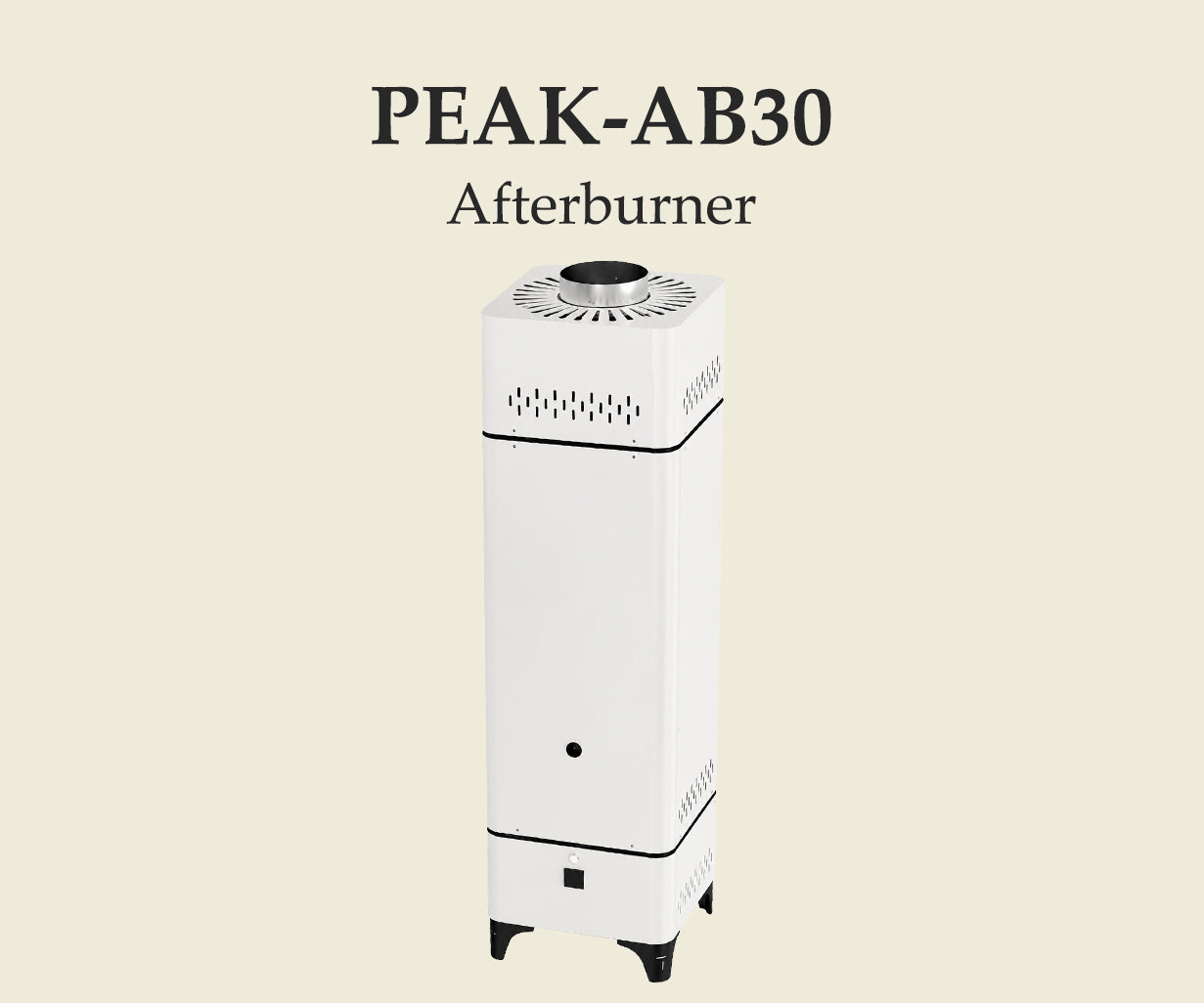

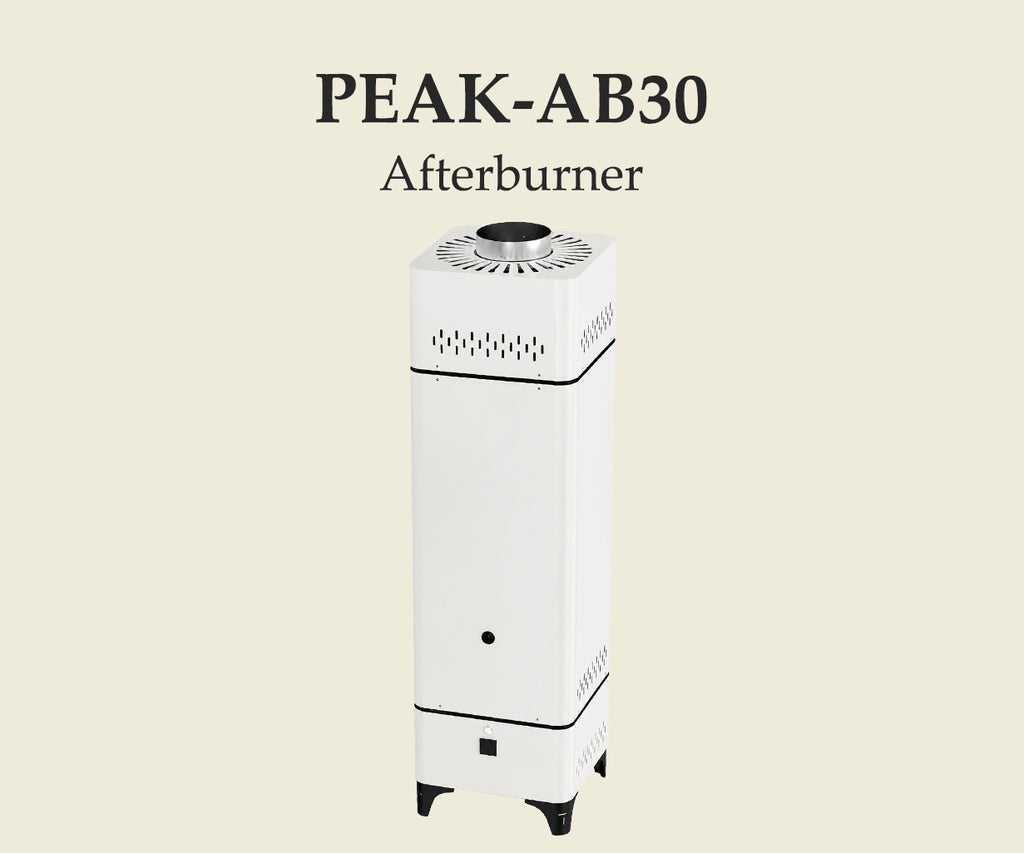

PEAK-AB30 Afterburner
RM0.00 MYR
Shipping calculated at checkout.
The PEAK-AB30 Afterburner is a commercial-grade smoke treatment solution developed for medium and large coffee roasting facilities. Designed with automatic roaster linkage control, it effectively reduces roasting smoke and odors while maintaining clean exhaust emissions during continuous production.
General
| Specification | Details |
|---|---|
| Product Type | Afterburner |
| Model | PEAK-AB30 |
| Color | White |
| Net Weight | 110 kg |
| Gross Weight | 140 kg |
Burner & Smoke Extraction
| Specification | Details |
|---|---|
| Control Method | Roaster Linkage Control |
| Gas Pressure | 4 KPa |
| Fuel Connection | DN15 |
| Gas Consumption (NG) | 3.5–7 m³/h |
| Gas Consumption (LPG) | 3–6 kg/h |
| Air Inlet | 150 mm |
| Exhaust Outlet | 200 mm |
Electrical
| Specification | Details |
|---|---|
| Rated Voltage | 220V |
| Rated Power | 100W |
Dimensions
| Specification | Details |
|---|---|
| Machine Size | 470 × 470 × 1650 mm |
| Package Size | 690 × 690 × 1850 mm |
- Automatic roaster synchronization
- High-capacity smoke treatment
- Commercial odor reduction
- Industrial burner design
- Easy installation
- Heavy-duty construction
