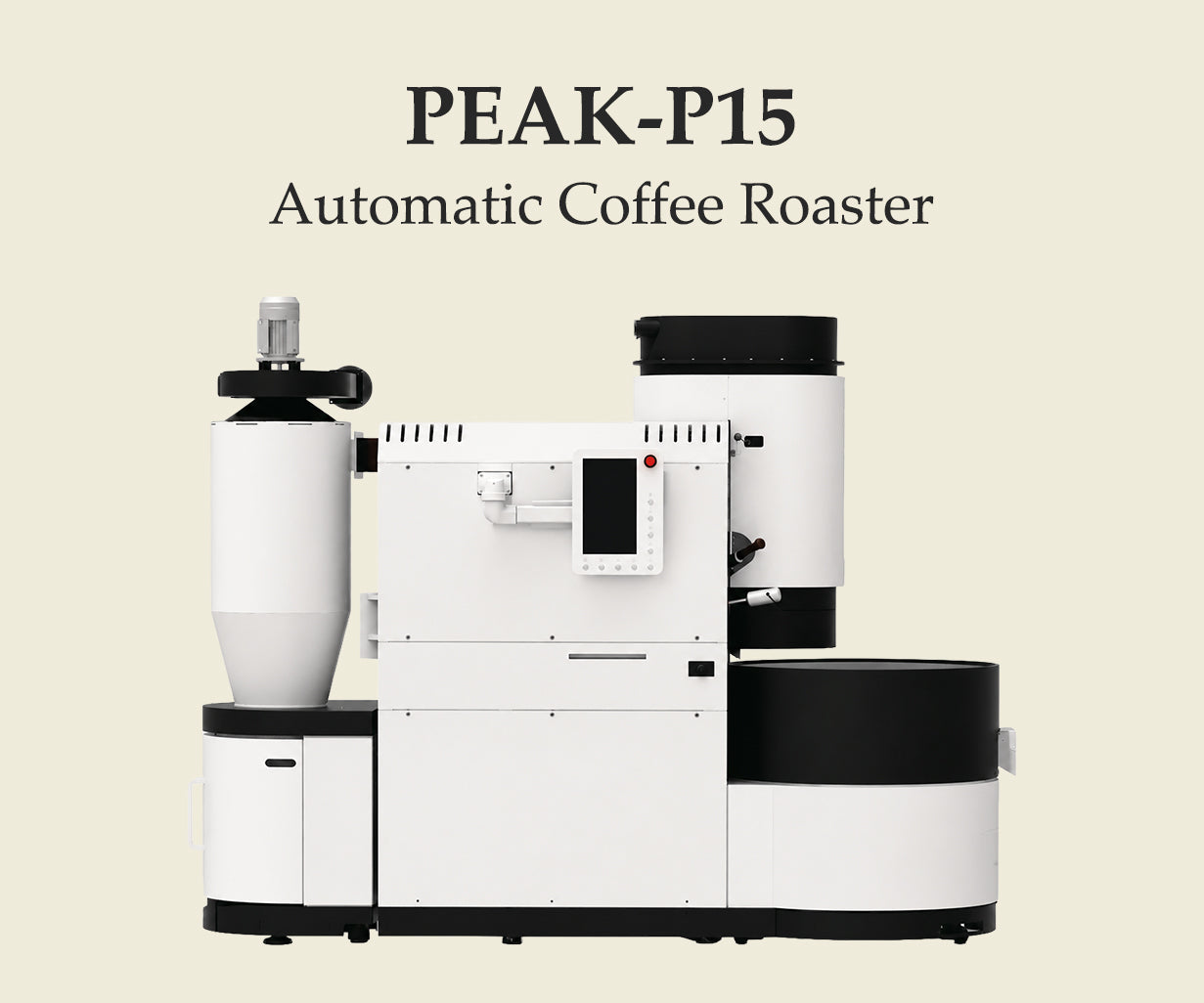

PEAK-P15 Automatic Coffee Roaster
RM0.00 MYR
Shipping calculated at checkout.
The PEAK-P15 Automatic Coffee Roaster is a professional-grade roasting system engineered for commercial coffee roasting facilities requiring exceptional consistency, automation, and production capacity. Available in both gas and electric configurations, the PEAK-P15 features the intelligent iHB + Artisan roasting system, a double-layer cast steel drum, digital air pressure control, and real-time roast monitoring. Designed for production batches from 3 to 15 kg, it delivers repeatable roast profiles through precise airflow management, automatic/manual operation, and advanced temperature monitoring.
Gas Version (PEAK-P15-G)
- Fuel: LPG / LNG
- Voltage: 220V
- Rated Power: 2100W
- Burner: Venturi-Premixed Burner

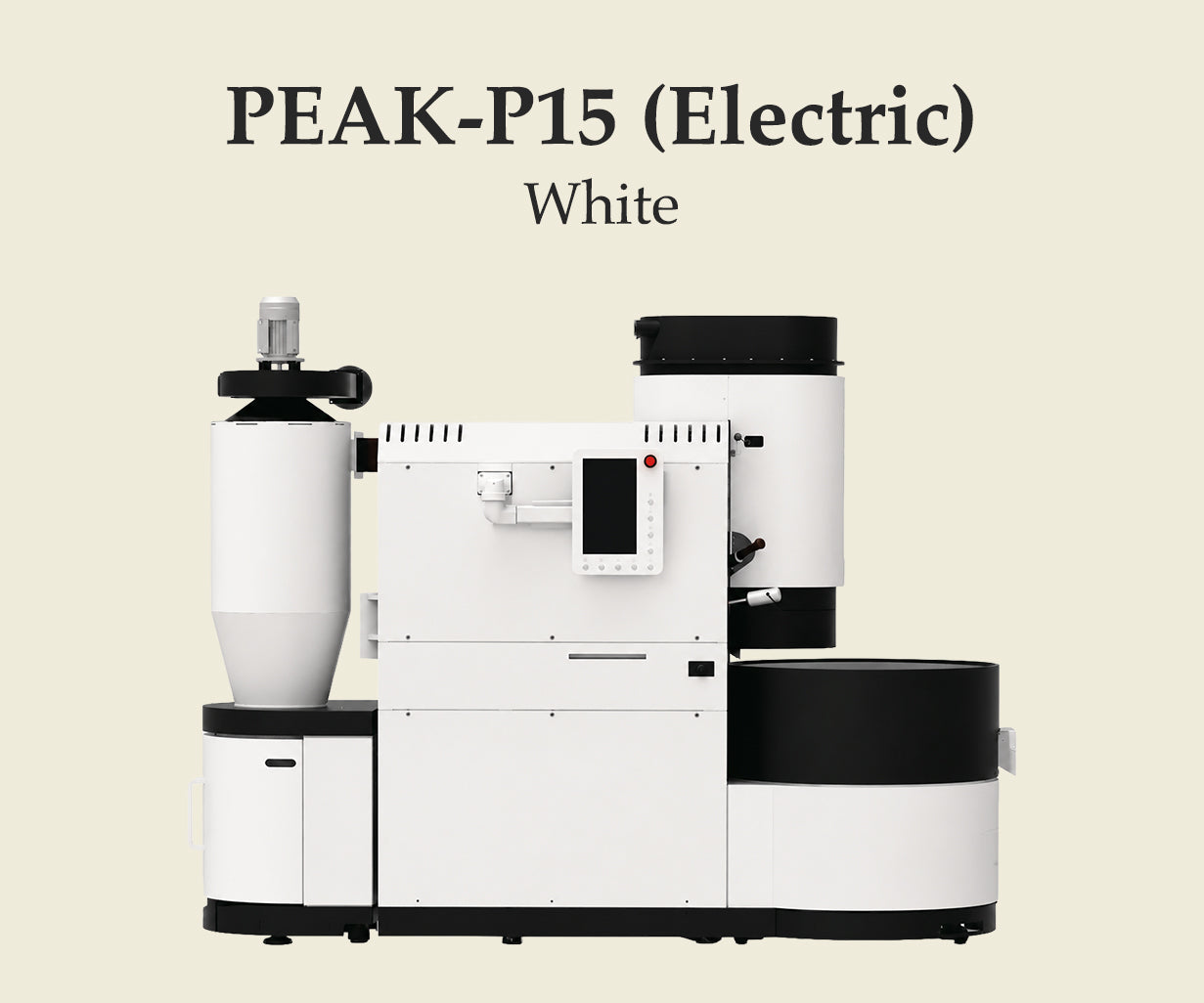

Electric Version (PEAK-P15-E)
- Three-phase Voltage: 380V
- Heating Power: 38kW
- Rated Current: 100A
- Heater: Multiple-Unit Heating Wire
General
| Specification | Details |
|---|---|
| Product Type | Automatic Coffee Roaster |
| Model | PEAK-P15 |
| System | iHB + Artisan |
| Batch Size | 3–15 kg |
| Roasting Capacity | 60 kg/h |
| Roasting Time | 6–15 minutes |
| Color | White |
| Net Weight | 770 kg |
| Screen | 13.3" HD Capacitive Touch Screen |
| Data Output | USB & WiFi |
Gas Version
| Specification | Details |
|---|---|
| Voltage | 220V |
| Rated Power | 2100W |
| Fuel | LPG / LNG |
| Combustion Chamber | Venturi-Premixed Burner |
| Gas Consumption (LPG) | 0.24–1.5 m³/h |
| Gas Consumption (LNG) | 0.48–3.0 m³/h |
| Gas Supply Pressure | 4 KPa |
Electric Version
| Specification | Details |
|---|---|
| Voltage | Three-phase 380V |
| Heating Power | 38kW |
| Heater | Multiple-Unit Heating Wire |
| Rated Current | 100A |
Drum System
| Specification | Details |
|---|---|
| Drum Type | Double-layer Cast Steel Drum (Standard) |
| Drum Paddle | Cast Steel Double-layer Multi-paddle (HB Patented Technology) |
| Drum Speed | 40–60 RPM (Adjustable) |
Hot Air System
| Specification | Details |
|---|---|
| Air Pressure Control | Digital Air Pressure |
| Fan Speed Control | Variable Frequency Speed Control |
| Hot Air Fan Discharge | 15.4 m³/min |
| Hot Air Duct Diameter | 150 mm |
Cooling System
| Specification | Details |
|---|---|
| Cooling Type | Stirring Cooling |
| Cooling Fan Discharge | 25.1 m³/min |
| Cooling Duct Diameter | 200 mm |
Temperature Monitoring
- Bean Temperature
- Hot Air Pressure
- Exhaust Temperature
- Ambient Temperature
Display & Connectivity
- 13.3-inch HD Touch Screen
- USB Export
- WiFi Connectivity
- iHB + Artisan Compatible
Exhaust System
- Independent Hot Air Duct
- Independent Cooling Duct
Machine Dimensions
| Item | Size |
|---|---|
| Machine | 2700 × 1150 × 2050 mm |
Package Dimensions
| Item | Size |
|---|---|
| Main Package | 2250 × 1200 × 2260 mm |
| Second Package | 1200 × 1100 × 1070 mm |
| Packaging | Two Boxes |
- Intelligent iHB + Artisan roasting system
- Available in gas or electric configurations
- 3–15 kg batch capacity
- Commercial production up to 60 kg/hour
- 13.3" HD capacitive touch display
- USB & WiFi connectivity
- Four-point digital temperature monitoring
- Digital air pressure control
- Variable frequency airflow adjustment
- Double-layer cast steel drum
- HB patented multi-paddle drum design
- Adjustable drum speed (40–60 RPM)
- Independent hot air and cooling exhaust systems
- Stirring cooling system
- Heavy-duty commercial construction
- Professional-grade consistency for production roasting
