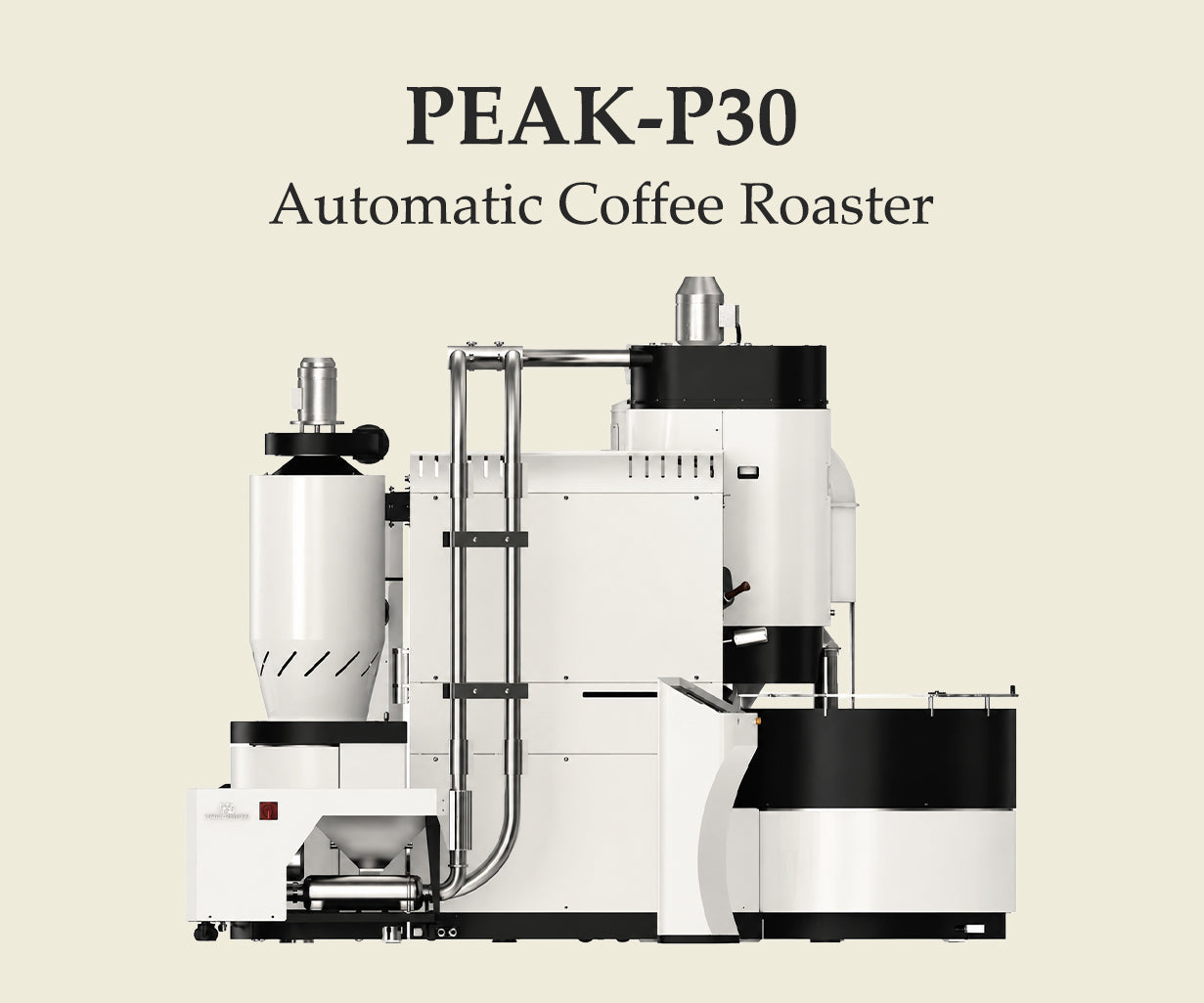

PEAK-P30-G Automatic Coffee Roaster
RM0.00 MYR
Shipping calculated at checkout.
The PEAK-P30-G Automatic Coffee Roaster is the largest gas-powered coffee roaster in the PEAK series, engineered for industrial coffee roasting operations requiring high production capacity, precision, and repeatability. Designed for batch sizes from 6 to 30 kg, the P30-G delivers production up to 100 kg per hour while maintaining consistent roasting performance through intelligent airflow control, a double-wall cast steel drum, and the iHB intelligent roasting system.
The PEAK-P30-G features digital monitoring of roasting parameters, including bean temperature, air pressure, gas pressure, and exhaust management. Its heavy-duty construction, industrial cooling system, and large-capacity drum make it suitable for coffee roasting factories, contract roasting businesses, and specialty coffee production facilities.
PEAK-P30-G (Gas)
- Fuel Type: LPG / NG
- Heating System: Venturi-Premixed Fire Row
- Rated Voltage: 220V
- Rated Power: 3500W
General
| Specification | Details |
|---|---|
| Product Type | Automatic Coffee Roaster |
| Model | PEAK-P30-G |
| System | iHB |
| Batch Size | 6–30 kg |
| Roasting Capacity | 100 kg/h |
| Roasting Time | 10–20 minutes |
| Heating Method | Convection Heating |
| Color | White |
| Weight | 900 kg |
| Display | Four-way Temperature Display |
| Data Output | USB & HDMI |
Gas System
| Specification | Details |
|---|---|
| Fuel Type | LPG / NG |
| Rated Voltage | 220V |
| Rated Power | 3500W |
| Combustion Chamber | Venturi-Premixed Fire Row |
| Gas Consumption (LPG) | 0–4.0 m³/h |
| Gas Consumption (NG) | 0–5.2 m³/h |
| Gas Supply Pressure | 4 KPa |
Drum System
| Specification | Details |
|---|---|
| Drum Type | Double-wall Cast Steel Drum |
| Drum Paddle | Double-layer Multi-piece Paddle |
| Drum Speed | 47–59 RPM |
| Speed Adjustment | High Precision Frequency Adjustment |
Hot Air System
| Specification | Details |
|---|---|
| Air Pressure Control | Electronic Variable Adjustment |
| Hot Air Fan Discharge | 14.5 m³/min |
| Hot Air Duct Diameter | 150 mm |
Cooling System
| Specification | Details |
|---|---|
| Cooling Type | Stirring Cooling |
| Cooling Fan Discharge | 21 m³/min |
| Cooling Duct Diameter | 200 mm |
Exhaust System
- Independent Hot Air Duct
- Independent Cooling Duct
Display & Monitoring
- Four-way temperature display
- Air pressure monitoring
- Gas pressure monitoring
Machine Dimensions
| Item | Size |
|---|---|
| Machine Size (Including Chaff Bucket) | 2300 × 1210 × 2200 mm |
| Machine Size (Without Chaff Bucket) | 3000 × 1210 × 2200 mm |
| Console Dimensions | 400 × 360 × 980 mm |
Packaging
| Item | Size |
|---|---|
| Package Size | 2350 × 1150 × 2250 mm |
- Industrial automatic coffee roasting
- 6–30 kg batch capacity
- Production up to 100 kg/hour
- Intelligent iHB roasting system
- Double-wall cast steel drum
- Four-way temperature monitoring
- Adjustable drum speed
- Independent cooling system
- USB & HDMI connectivity
- Electronic air pressure control
- Heavy-duty commercial construction
