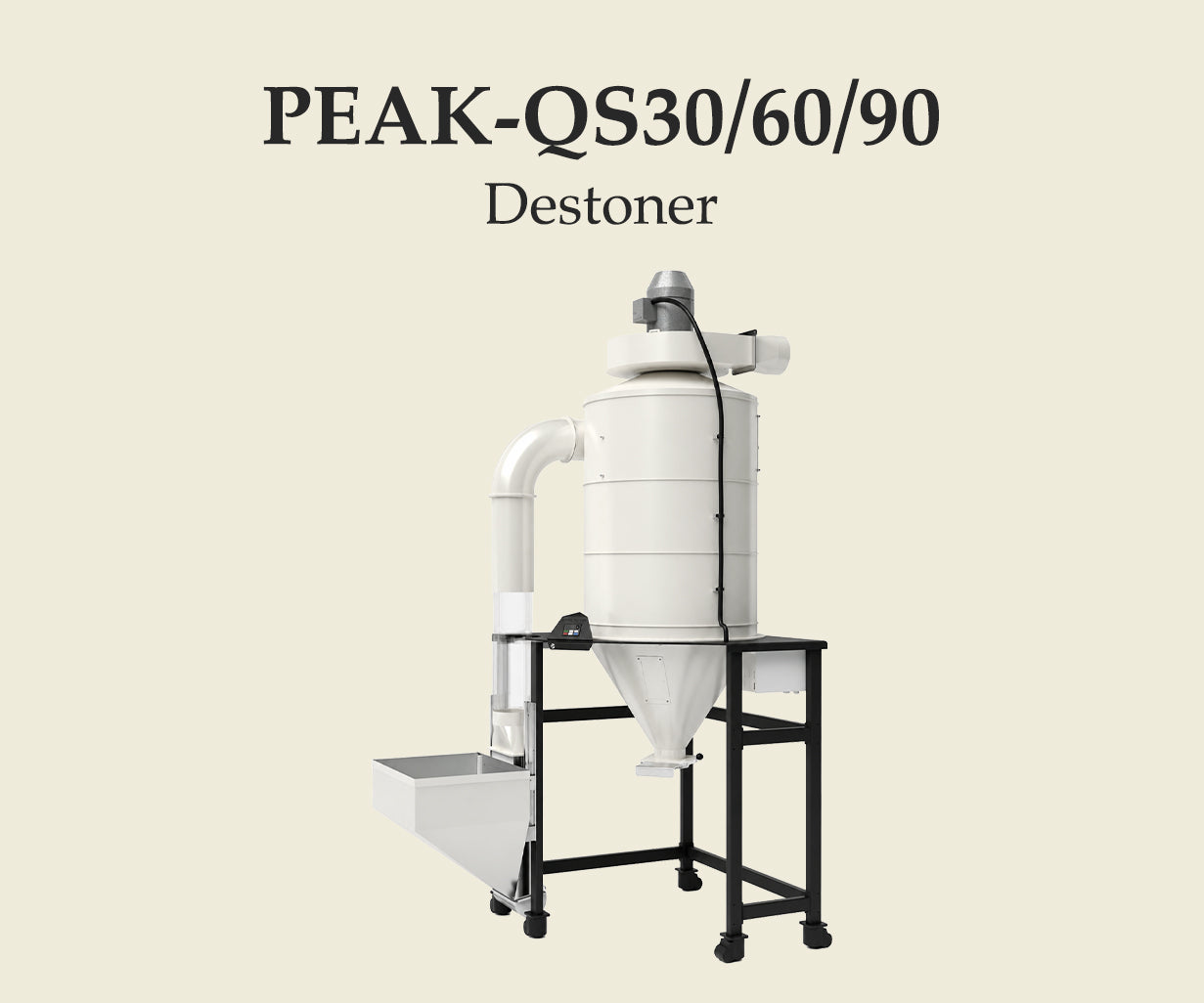

PEAK-QS30 / QS60 / QS90 Coffee Destoner
RM0.00 MYR
Shipping calculated at checkout.
The PEAK-QS Series Coffee Destoners are industrial airflow-based stone removal systems designed to separate stones, metal fragments, and heavy foreign materials from roasted coffee beans before packaging or grinding. Featuring an adjustable slide rail, the QS Series easily adapts to different roaster discharge heights and provides seamless integration with PEAK roasting equipment.
All three models deliver a maximum processing capacity of 500 kg/h, making them suitable for specialty coffee roasteries and commercial production lines.
| Model | Bean Capacity | Machine Weight |
|---|---|---|
| PEAK-QS30 | 40 kg | 120 kg |
| PEAK-QS60 | 70 kg | 140 kg |
| PEAK-QS90 | 100 kg | 160 kg |
General
| Specification | Details |
|---|---|
| Product Type | Coffee Destoner |
| Model | PEAK-QS30 / QS60 / QS90 |
| Color | White / Black |
| Maximum Processing Capacity | 500 kg/h |
| Rated Power | 1500 W |
| Rated Voltage | 220V / 50Hz |
| Air Suction Volume | 50 m³/min |
Feeding Hopper
| Specification | Details |
|---|---|
| Adjustable Height | Up to 700 mm (QS30/QS60) |
| Adjustable Height | Up to 875 mm (QS90) |
| Hopper Width | 450 mm |
| Hopper Depth | 625 mm |
Model Dimensions
PEAK-QS30
| Specification | Details |
|---|---|
| Machine Size | 1370 × 1000 × 2220 mm |
| Main Package | 1450 × 1070 × 1345 mm |
| Attached Package | 775 × 770 × 1555 mm |
PEAK-QS60
| Specification | Details |
|---|---|
| Machine Size | 1370 × 1000 × 2480 mm |
| Main Package | 1450 × 1070 × 1345 mm |
| Attached Package | 775 × 770 × 1555 mm |

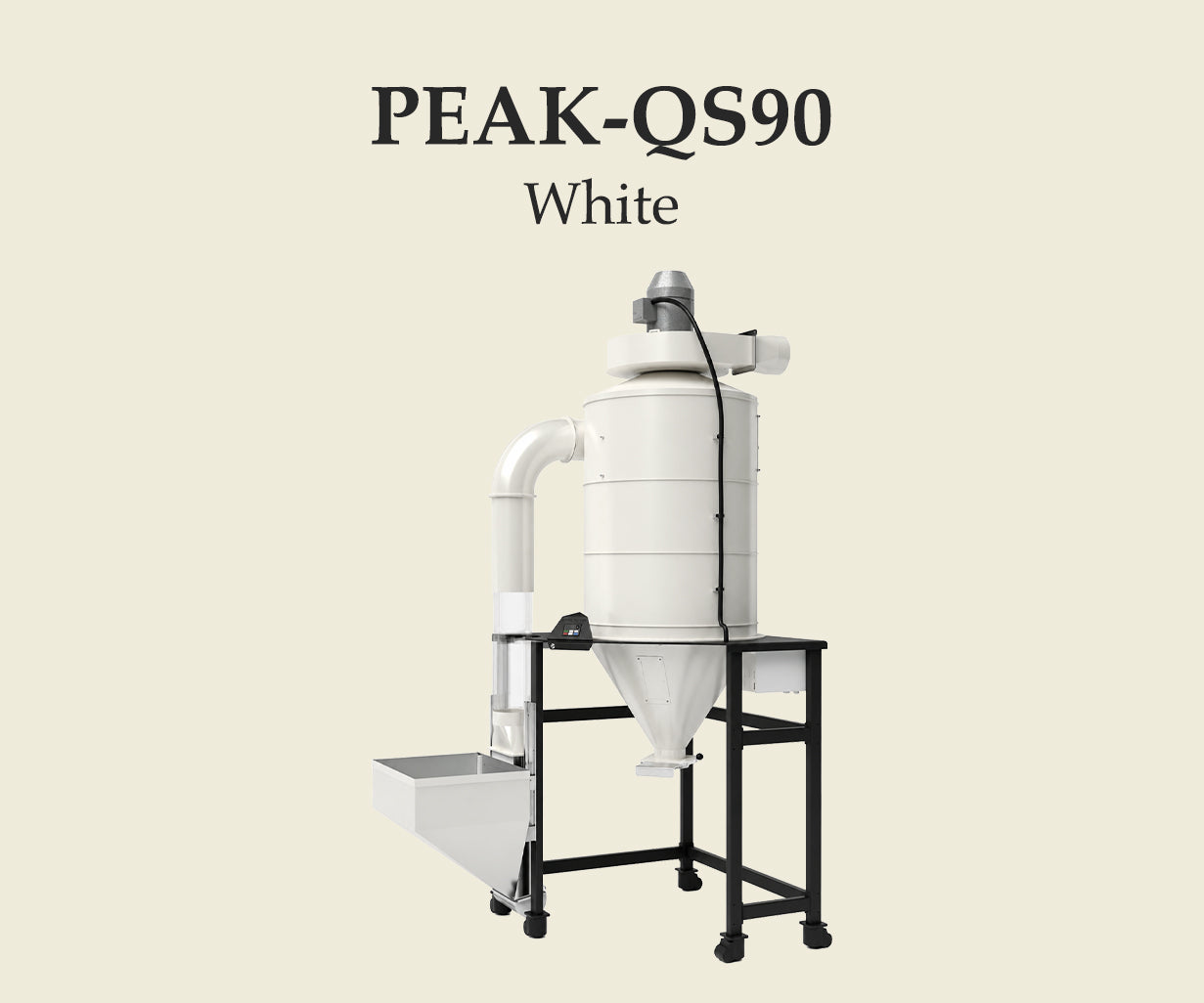

PEAK-QS90
| Specification | Details |
|---|---|
| Machine Size | 1370 × 1000 × 2740 mm |
| Main Package | 1450 × 1070 × 1345 mm |
| Attached Package | 775 × 770 × 1795 mm |
- Airflow-based stone separation
- Processes up to 500 kg/hour
- Adjustable slide rail for different roaster spouts
- Supports multiple PEAK roasting models
- Heavy-duty industrial construction
- Improves roasted coffee quality
- Protects grinders from foreign objects
- Smooth bean discharge
- Available in 40 kg, 70 kg, and 100 kg hopper capacities
