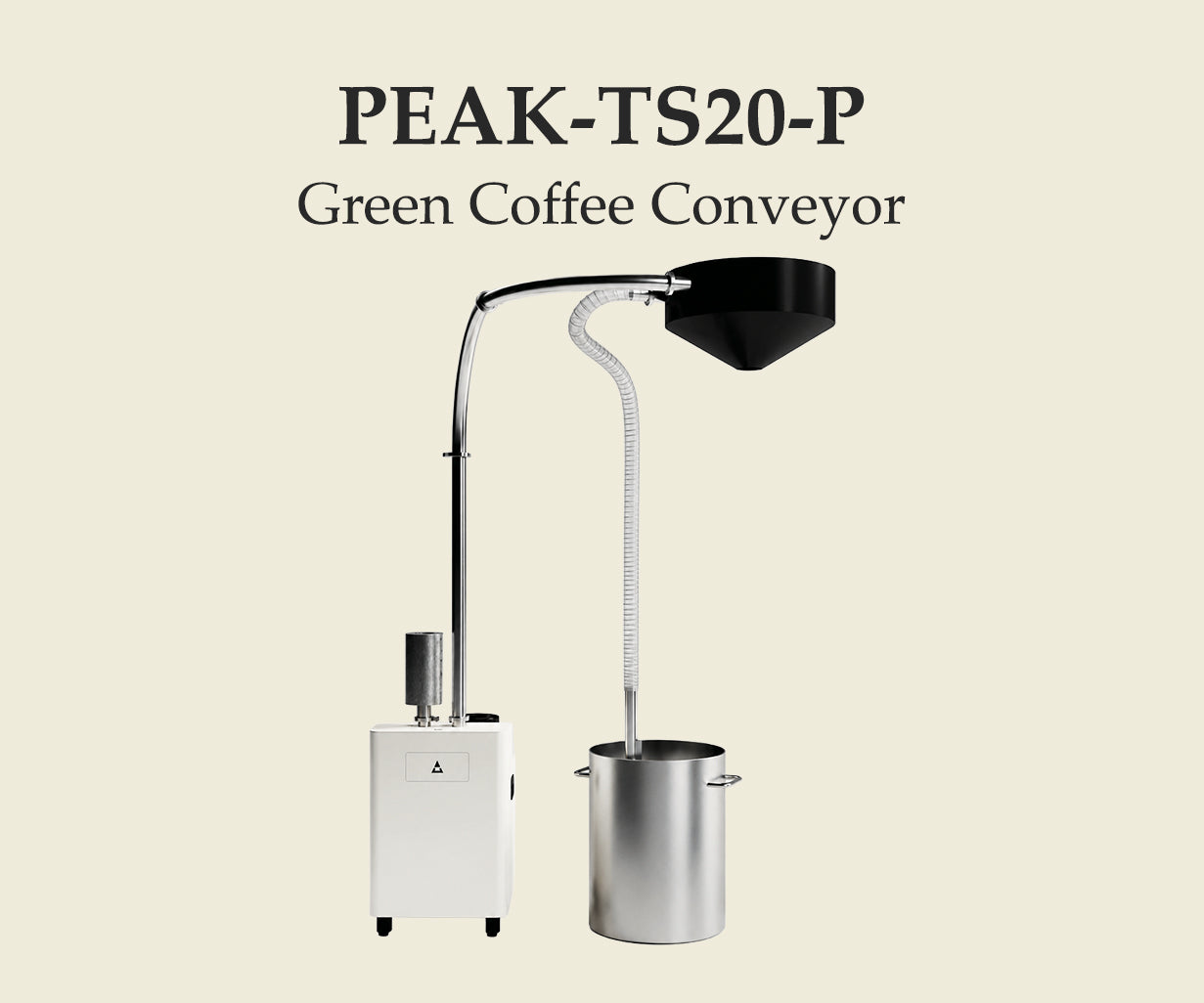

PEAK-TS20-P Green Coffee Conveyor
RM0.00 MYR
Shipping calculated at checkout.
The PEAK-TS20-P Green Coffee Conveyor is an automatic bean feeding system developed to improve workflow and reduce manual labor in commercial coffee roasting environments. Designed for use with compatible PEAK coffee roasters, it automatically transfers green coffee beans from storage containers to the roasting hopper with stable feeding performance and customizable conveying height.
Ideal for medium-sized roasting operations, the TS20-P offers efficient bean handling, flexible installation, and durable commercial construction.
General
| Specification | Details |
|---|---|
| Product Type | Green Coffee Conveyor |
| Model | PEAK-TS20-P |

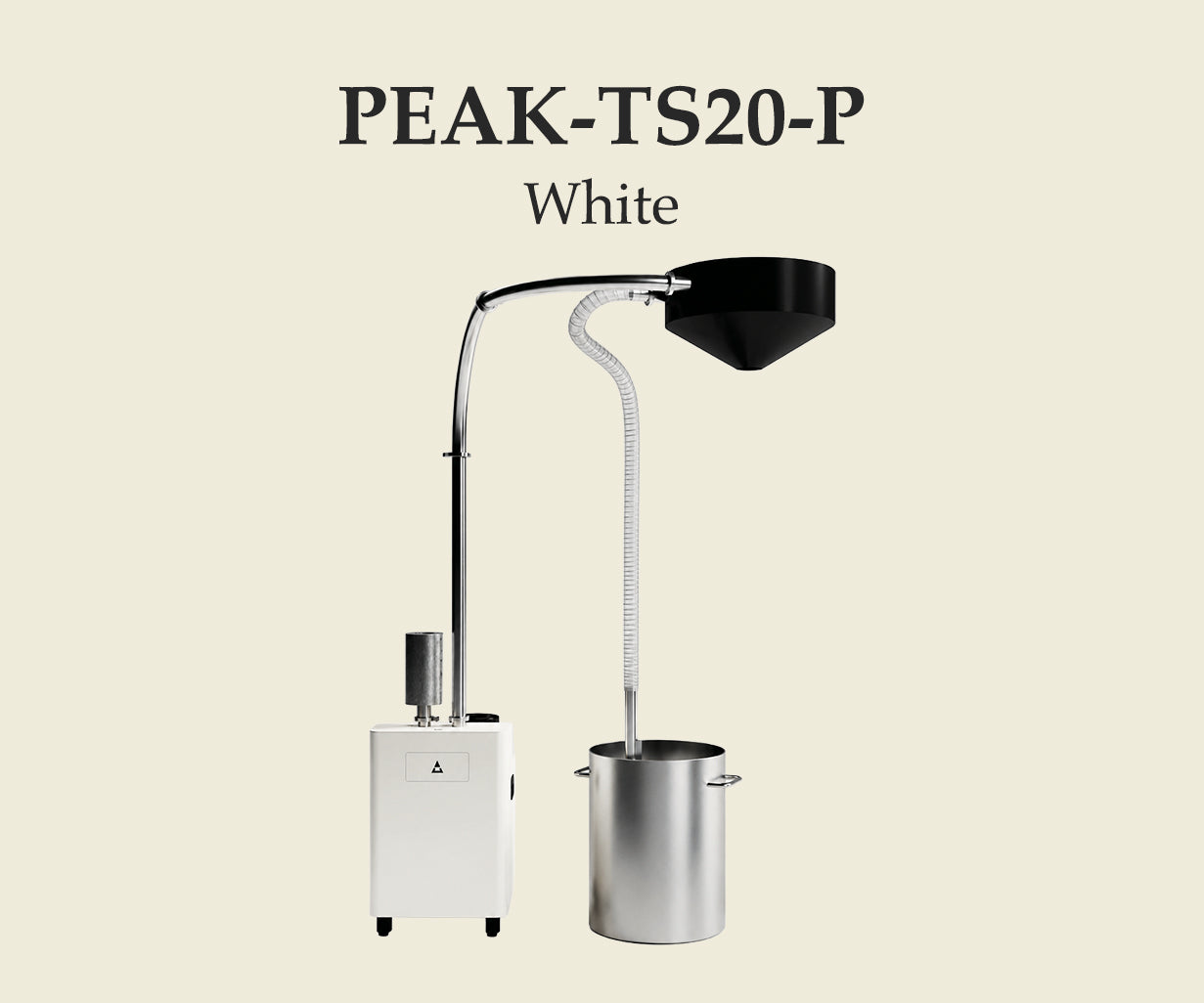

| Color | White |
| Net Weight | 42 kg |
| Gross Weight | 60 kg |
Feeding System
| Specification | Details |
|---|---|
| Feeding Capacity | No Specific Volume |
| Feeding Speed | 8 kg/min |
| Feeding Pipe Diameter | 38 mm |
| Standard Lifting Height | 2 m |
| Maximum Lifting Height | 3 m (Customizable) |
| Standard Horizontal Distance | 1.5 m |
| Maximum Horizontal Distance | 8 m (Customizable) |
Electrical
| Specification | Details |
|---|---|
| Rated Power | 1100W |
| Voltage | Three-phase 220V |
Machine Dimensions
| Item | Size |
|---|---|
| Machine Size | 460 × 400 × 840 mm |
| Package Size | 670 × 560 × 650 mm |
- Automatic green bean feeding
- 8 kg/min conveying speed
- Adjustable lifting height
- Long-distance conveying
- Commercial-grade construction
- Compatible with PEAK roasting equipment
- Reduces manual bean handling
